machine europa
requires
Spinning
10 Volkmann VTS 08 S Year 1996
156 spindles each
Gauge 222.5
Feeding 6”
Exit (conical) 6”4°20
Pneumatic threading Soft cone for dyeing
Box feeding dim. 215 (outside)
Box feeding dim. 185 (inside)
Height outside 185 mm
Height inside 160 mm
Blower
Wolts 380 V 50 Hz
Delivery: ready

2 SSM Assembling winder model FMX Year 1996
48 heads Double side
Steel grooved drums 1,5 turns
Diam tube 54 mm
Manual doffing
Feeding 6”
Feeding by internal creel 3 ply
Blower
Wolts 380 V 50 Hz
Delivery: ready

1 COMPLETE SIZING LINE
--------------------------------------------

1 SUCKER MULLER HACOBA SIZING MACHINE Typ.W10 Year 2000
Working width 190 to 440 cm maximum
with 1 size box double squising 220cm
10 Drying cylinders diam 800mm. 10 teflon coated
with kitchen 2 inox tanks, with automatic dossing sytem
with hood
beam flange diam. 1100 mm maximum 1250 mm
single beam feeding of sectional warper or direct warper
regulation of yarn tension on the delivery beam
feeding beam with pneumatic break for yarn tension.
complette Siemens plc controll,
Original Mahlo humiditi controll,
Break system tension system,
20 beams Creel with 30 beams Diam 1000 mm
with complete

1 Direct warper SUCKER MULLER HACOBA Year 2000
working width 220 cm
with BENINGER ectronic paralel Creel 640 bobbins
maximum beam diameter 1000 mm. maximum 1250 mm
creel gauge vertical 300 mm,
horizontal 300 mm
warp beam pressing device
waxing device
Locatiýon Turkey

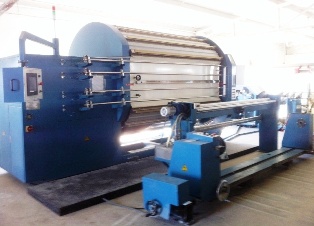

1 Sample Warper TONG YUAN Type GA193-Hihg Speed 2200 mm Year 2000
Equipped with a system to enable operation with both standard creel
and rotational creel in one process.
Machine equipped with the following devices:
High speed selector 10 colours + 8 colours total 18 color
Standard creel complete of 10 accumulators, stop-motion system, bobbin
Stand, equipped with pneumatic yarn draw-back system, electronic stop signal in case of yarn breakage
Suzuki Rotational creel 8 colours for the warping combination with Standard creel, complete of 8 accumulators
IBM computerised system (interface & software) for pattern control and creel combination
Waxing device on beaming side
beaming auto-doffer
with complete
1-Single yarn sizing machine TONG YUAN Year 2000
Horizontal 12 head
Location Turkey

6 x Automatic winder Savio Espero E year: 1996
Type: Espero E
No of heads: 60
Feeding of tubes: Automatic from single box
Yan clearers: Uster Polymatic MK-C15-AC
Splicers: Mesdan 490 L
Waxing: Yes
Conicty: 5.57
Doffer: 1 no.
Blower: Magitex
with complete
Location Turkey

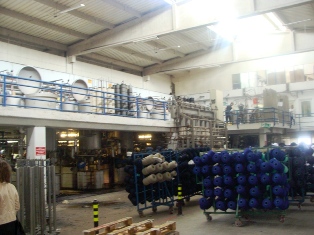

COMPLETE CONE DEYEING PLANT
______________________________________________________
1-Complete fully automatic Cone Dyeing Line KRANTZ Germany Year 1998/2007
Description: one complete fully automatic package dyeing plant
4800 kg x 4 =19.800 to 24.000 Kg maximum capacity in 24 hours operation, consisted of:
---------------------------------
1 Degrade Dyeing Cedit 2 Kg Sample Dyeing
1- HT Cone dye KRANTZ 8 Kg Samples Dyeing
2- HT Cone dye KRANTZ 25 Kg Samples Dyeing
4- HT Cone dye KRANTZ 50 Kg
2- HT Cone dye KRANTZ 100 Kg
2- HT Cone dye KRANTZ 200 Kg
1- HT Cone dye KRANTZ 250 Kg
1- HT Cone dye KRANTZ 350 Kg
1- HT Cone dye KRANTZ 400 Kg
2- HT Cone dye KRANTZ 500 Kg
2- HT Cone dye KRANTZ 1000 Kg

2- Bobbin Santrifugal DETTINI24 70 Kg
1-Bobbin Press
2-STALAM Drying Machine 2 Chamberst 80 Kw
1 RF Ifrareed Drying machine 30 kw
2 Winding Machine FADIS 80 head Soft turn of winding
2 Winding Machine HACOBA 80 head Soft turn of winding
4 Winding Machine SSM 50 head Týght turn of winding
6 Winding Machine HACOBA 112 head normal bobbins 5.57
1 Automatic Chemical and Paint Dossing System with 4 inox tanks
1 Dyed laboration with machines
30 000 Pcs Plastic Dyed masurings
1 Zancaner Automatic paking machine
with accessories complete
Location Turkey

1-Single yarn sizing machine KAJI SEISAKUSHO japan Year 2003
This machine Year 2003 with fully reneved the firm KAJI SEISAKUSHO Year 2011
Horizontal 12 head
Equipment instruction
This equipment can slash, dry and roll the single yarn into cheese, satisfying the to satisfy the later working procedure.
This can simplify the working procedure, expand the range of sizing and reduce the consumption of slurry and materials.
It is widely used in the industries of
wool spinning, hemp spinning, cotton spinning, chemical fiber, colored woven and thread making etc..
Technical parameter and performance index
Number of Spindle: 12; 8,20
Speed: 20-360m/minute(decide on the kinds of yam)
Yarn:5-500tex or Ne 10 to 100
Heated pattern of Dryer vapor or electricity
Cutting Parts: electrical length or diameter dial, speed appearance
Speed Control according to Frequency Conversion
Motor Power:2.2kw×1,1.5kw×1, 0.4kw×2(spindles 6)
Location Turkey

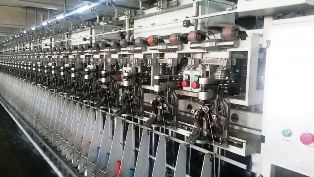

8 CHENILLE machines MISPA each 120 spindles. 60 head Year 2007/2008
3 machine year 2008
5 machine year 2007
Electronic driving headstock,
Electronic rotary -head , rotary-blade cuting ,
Ring diameter 115 mm, tubes length 450 mm, oiling ring device, electronic spinning head max. 20.000 RPM
feeding rollers max. 300 RPM (30 meter/minute), spindle rotation max. 8500 RPM, with input creels
1 indipendent electronic-panel
1 motor x 2 spindles
1000 tubes including feeding-creel .
Electronic microprocessor control-power device for
With Complete
Location Turkey

4 CHENILLE machines MISPA Year 2007/2008
each 136 spindles. 68 schenille head the head for germany
2 machine year 2008
2 machine year 2007
Electronic driving headstock,
Electronic rotary -head , rotary-blade cuting ,
Ring diameter 115 mm, tubes length 450 mm, oiling ring device, electronic spinning head max. 20.000 RPM
feeding rollers max. 300 RPM (30 meter/minute), spindle rotation max. 8500 RPM, with input creels
1 indipendent electronic-panel
1 motor x 2 spindles
1000 tubes including feeding-creel .
Electronic microprocessor control-power device for Invertors
With Complete

2 Schenille Bobbin Widers FILCANO ITALY Yeay 2007
12 + 12= 24 head 10 inces filat bobins 4..20 C conicaly
with Optical read
Location Turkey

1 SUCKER MULLER HACOBA SIZING MACHINE Typ.W10 Year 2006
Working width 360 cm maximum
Beam flange diam. 1100 mm
with 2 size box double squising 220cm
12 Drying cylinders diam 800mm 8 cylinders coated teflon
With kitchen 2 inox tanks, with automatic dossing sytem
Single beam feeding of sectional warper or direct warper
Regulation of yarn tension on the delivery beam
feeding beam with pneumatic break for yarn tension.
Complette Siemens plc controll,
Original Mahlo humiditi controll,
Break system tension system,
16 beams Creel with 36 beams Diam 1000 mm
with complete
1-Direct Warping Machine TOYCI -Typ Highspeed Year 2006
Working with 220 cm
warp Diam 1000mm,
with V Crell 760 x 2 = 1520 Spidles
With complete sizing line
Location China

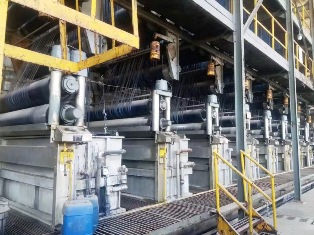

1 MORRISON Indigo Rope Dye Range Year 2005
24 Rope Capacity, Jumbo
180 wide Drying Cans
Creel Section:
24 each 2 Ball Creell mounted with Positive
Track Rope System
Primary Range Draw-in Roll with I to P and pressure transmitter.
Dye and Wash Box Section:
Each box shares the following equipment
Draw in Squeeze Roll with I to P and pressure transmitter
Pneumatic Compensator with I to P pressure transmitter
working Width 180cm
40 Pcs cylinder dia 600mm
24 pcs cooker
3 pcs dyeing tank
8 pcs washing tank,
2pcs can dia 1.8 Meter
24 ropes mcs,but use for 28 ropes
1 Fully automatic chemicaly dossing system MORRISON Year 2005
with complete

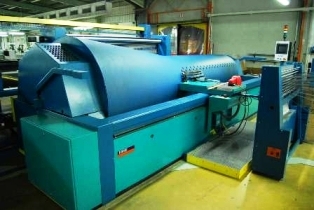

1 set BENINGER Sectional Warper, Typ.Ben-Ergotronic, Year 1998
Working Width 2.4m,
Cone 110 cm, Waxing, Pressure Roll
Max. Beam Flange Diameter 1250 mm,
Automatic Crossing Reed in 8 Layers
Antistatic Device
1Benninger H-Creel, Model Ben-Guard, Year 1998
pressure rollers, with 2 warpcreels spindle distance 300 mm :
--40x8x2 = 640 ends automatic cutting and tying
with waxing device
with Magitex autocleaner
Pre-Tensioning Crepe Type (high twist yarns)
Location Turkey

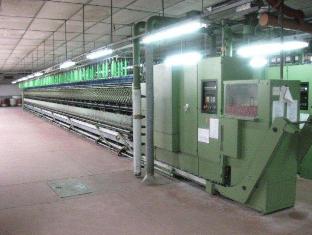

10 x worsted ring spinning machine CSM
----------------------------------------------------------------------------------
8 x worsted ring spinning machine CSM Model 2115K Year 1997
640 Spidles
2 x machine 768 spidles gauge 75 mm. - ring diam. 52 mm. Year 1999
spindles gauge 75 mm. - ring diam. 52 mm. - tubes 260 mm. - draft SKF PK1601
Autodoffing system
2 machine for 1 autocleaner Magitex
Location Turkey

1 Sectional Warping KARL MAYER Econ o matic Year 2010
Working Width 2.400mm,
Cone lenght 630 mm.
Conicity 15°
Section max width 230 mm.min.20 mm.
Waxing, Pressure Roll
Max. Beam Flange Diameter 1150 mm,
Automatic Crossing Reed in 8 Layers
Antistatic Device
1 Karl Mayer H-Creel, Model Ben-Guard, Year 2010
760 Ends, Pitch 270 x270 mm,
Pre-Tensioning Crepe Type (high twist yarns)
Location Turkey
