Finishing
|
|

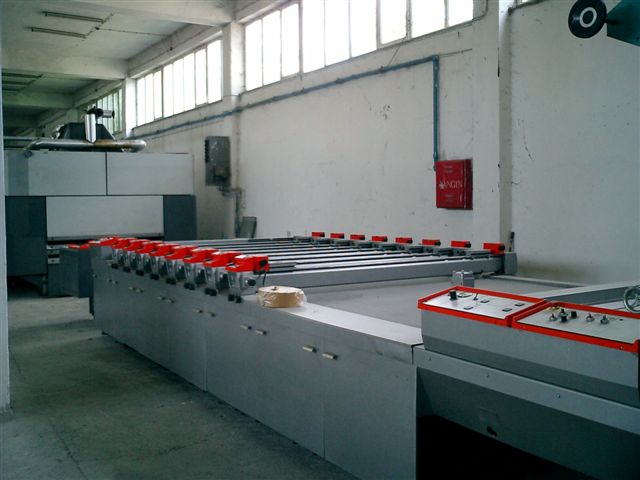

1 Flath Bed Print mc BUSER-HD6 .210/12/9 Year 1995/revisied in 2014 This machine fully revisied with motified hidromax 7 machine witdh 240cm working Widh 210 cm. 9 Colors ( 12 color posible) Erhat -Laimer Opening System Buser Drying 3 Chambers, Oil Heating 3 passage, teflon bant Thermoplas sys and vacum cleaners Bilanket washing and Drying system, Command panel and Accesories Complete Machine totaly Lengh 56 meter machine Location Turkey Delivery.immediately |
|
|
|

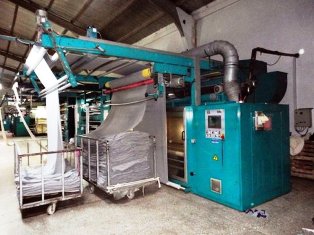

1-Lisa Carbon Brushing and Suading-Emerizing Machine LAFER SPA Typ Ultrasoft Year 2007 Working width 2200mm Machine Equipment with 6 Carbon and chance emery Brush cylinders Diam 300mm 6 Brushing cylinders Indipendently driven by ac Motors witn inverters on EACH CYLINDER Automatic seam passage Electrostatic bars Folder at exit Fully automatic computer system With Aspiration group Location Turkey
|
|
|
|

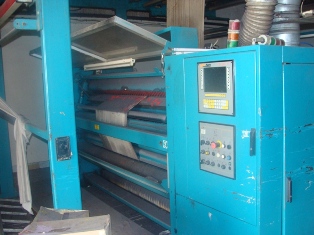

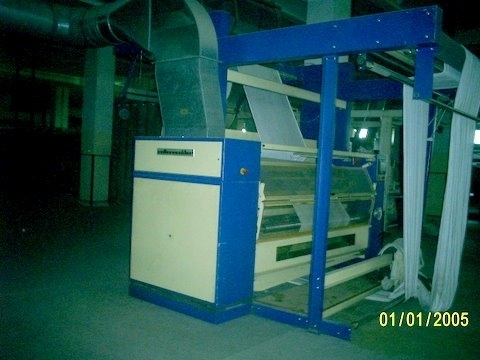

1 Shearing machine LAFER type CMI-2S 220cm year 2002 working width 220 cm 1 unit,24 knife with metal detector with aspiration group complete Location Turlkey
|
|
|
|

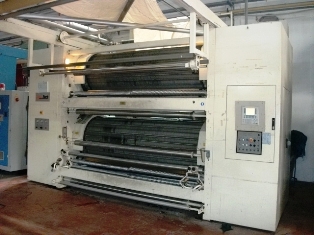

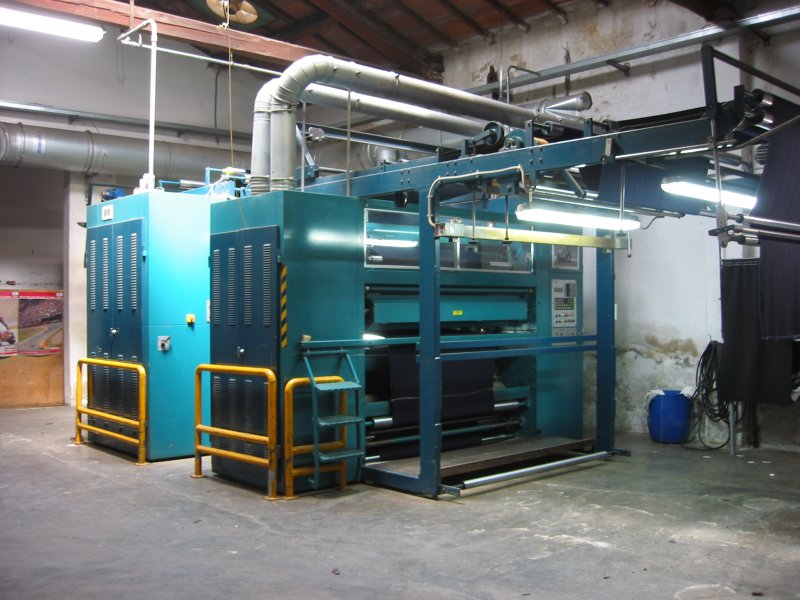

1 Raising machine LAFER, model GRV-90 H2200, year 2002 width 220 cms, for knitted and woven fabrics, with 2 drums each of with 24 raising cylinders, upper drum on counterpile - lower drum on pile-counterpile, PLC control, touch screen, machine complete with suction filters with complete Location Turkey
|
|
|
|

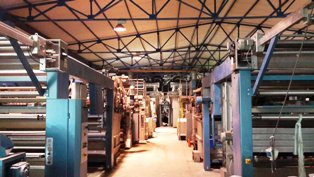

2 Stentering Line STENTEX Stentotherm 3300 E-K Year 1998 working width 200cm 4 chamberst 6 pasage Gaz heating Pin chain 1 stentex complete stentering - drying - and setting plant designed as multy layer stenter for woven fabrics Entry frame with guiders 7 Pieces per side burner at a residence of about 70 meters. 2 Sets of beta made padders designed as 3-bowls finishing foulard 1 Benninger made carbonising washing department 1 Corino weft straightner entry field Thermoprocessing by 4 sections on 6 passages diract gas heated and steam heated cooling field Big batch winder Plaiter control panel, siemens type s7 control system touch screen controlled Location Turkey Delivery time .Immediately |
|
|
|

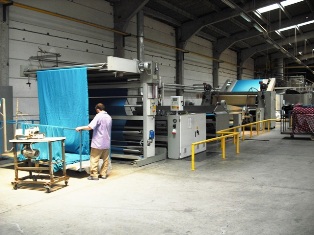

2 -Compacting machine FERRARO Year 2003 Typ COMPTEX/RC-2500 Machine width 2500mm, working width 2450mm, 7 Mtr etrance long Pin Clip Chain steam heated,steam feeding 4 bar. Equipped with: 1-Tandamatic veft feeders 1 Bianco veft feeders 4 photocel fabric speed from 5 to 60 meters per minute, entry through pin chain, It does had both rolling and plaiting device, The compacting zone is for open width fabrics. Excellent condition, like new Pictures upon request Machines Fully Revisied and new caines in 2010 machines Location Turkey |
|
|
|
1 COMPACTOR - FERRARO - 1500 MM - Year 2010 FERRARO TUBULAR COMPACTOR MODEL COMPTEX / FV-E 1600, FULLY EQUIPPPED WITH PRECONDITIONING (STEAMING) DEVICE, ELECTRICAL HEATING MAX 108 CELCIUS, MAGENTIC OPENERS, NEW NOMEX BLANKET, COOLING DEVICE, ANTI-STAIC DEVICE, ROLLER, PRECISION NON-STOP FOLDER & OPTIONAL EXIT CONTROLS. MACHINE MOST SU ITABLE FOR LYCRAS, PRODUCTION HOURS 6 tons WITH COMPLETE Location Turkey |
|
|
|

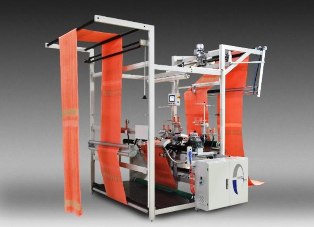

1 AZIM Length hemming installation for terry fabric year 2014 Working width 30 to 200cm 2 Sewing machine with opening system Features of this installation: Edge trimming Pile edge scanning Label dispensing optional Hemming (hem forming upwards) Plaiting Advantages for your production: High output High flexibility Chain stitch, cover stitch or lock stitch with automatic bobbin case changer Smooth working up of thick borders High precision Remote maintenance with complete Location Turkey
|
|
|
|

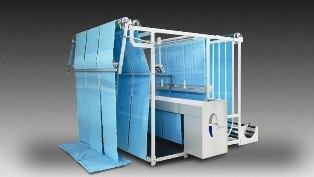

1 AZIM Length cutting installation for terry fabric year 2014 working width 30 to 200cm 4 Automatick cutting Bleades Features of this installation: Mechanical scanning of the pile edge or optical control of the cutting devices Multi-lane length cutting Plaiting Advantages for your production: High output High flexibility High cutting precision Fast adjusting for different cutting widths Remote maintenance With complete Location Turkey |
|
|
|

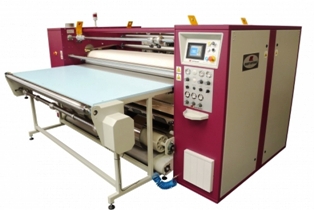

1 Transfer Printing machine MONTI ONTONIO Year 2014
Calendar for continuous sublimation ransfer thermoprinting,
Roller width 2000mm
Working width: 1800 mm Printing cylinder diameter: 800 mm Electricaly with Oil bath cylinder, vacuum sealed, Working Width: 180 cm Working Speed: Time is up from 60 to 200 mtr production from Electric power: 22 kW of electrical power (three phase) 380 V, 50-60 Hz Continuous Coverage: Approximately 14 Kw hours of electricity consumption. Max. Pressure System: Max. 8 Bar hava basıncı 8 bar air pressure AC Invertör Drives: AC Inverter Felt: 100% nomex 2000 Kg. Net Weight: 2000 kg. 3270 mm The area covered by Width: 3270 mm Length: 2800 mm 1420 mm Height: 1420 mm 230 C after the machine starts up 70 minutes to reach. Police can run back to the master cylinder. Auto seal has an average system. The machine's width 1800 mm. To be used in case of power failure the cylinder has to manually flip the lever. The machine at the entrance to the emergency stop and safety wire barrier that prevents compression has silindireel.
Delivery Time.Immeditely
Machine Location Turkey
|
|
|
|

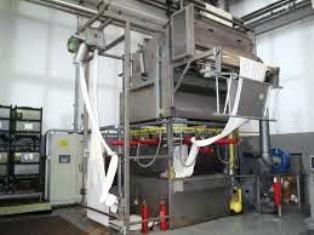

1 x DORNIER Tubular knitting fabric singeing machine Year 2008 Maximum diameter 36" CORINO turning detwisting platform, ehhaust treatment 8 gas burners,Gas conrtol syetem filter and dust extraction unit Comand panel with complete Immediately |
|
|
|

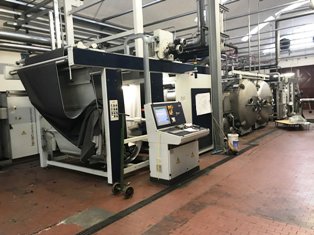

1 Lafer continuous ammonia mercerising line Year 2011 Model: Permafix Rrollers width : the machine plate indicates 2.000 mm, but all the rollers, on specific request of the actual owner, are wider (they are about 2200 mm). sometimes he has processed elastic fabrics up to 2100 mm. The line is composed as follows: - Entry frame for the fabric complete with adjustable fabric braking device - J-BOX device with accumulation of the fabric with non-stop effect on the entry - widening device for the edges - brushing group with double brush for the right/reserve side complete with suctioning - dehumidification unit with cooling on the exit, composed of: 3 cylinders, heated by steam, diameter 500 mm on the entry 2 cooling cylinders, diameter 500 mm on the exit - unit to create the vacuum with double sealing system - vacuum unit for the treatment of the fabric in ammonia - vacuum unit for the fabric drying for the evaporation of the ammonia with conveying to the recovery system - unit with double sealing system for the vacuum retention - vaporization unit to eliminate the last traces of ammonia - deodorizing unit composed of 2 heated cylinders, diameter 500 - J-BOX device with accumulation of fabric with no-stop effect on the exit - Delivery of the fabric in big roll or plait - 1 control pulpit “slave” on the machine - 1 control pulpit “master” in the operating office - 1 main electric board Examples of the plant Productivity, which changes very much according to the fabric type, their cleannes degree and weight: - fabric denim, width1900 mm 400/450 gr. linear meter, not desized, - speed 10/11 meter/min. - fabric denim, width 1900 mm 400/450 gr linear meter, desized - speed14/15 mt/min. - shirting fabric, width 1800 mm 150/200 gr. linear meter - speed 18/20 mt/min With Complete working condiditons Immediately |
|
|
|

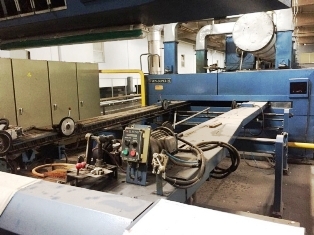

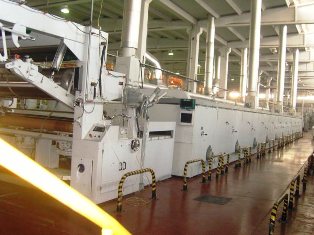

1 Stenter SUN SUPER Korea Year year 2002 Machine width 220cm working width 200cm maximum 7 chambers. Gas heating Horizontal pin clip-nedeles input length 7 mtr 1 finishing padder 2 cylinders with mixing tanks.pums 1MAHLO weftstraightener type RMFC-9P. Knited fabrics air Opening system Edge cutting and the air system Textometer with Permaset Plv Electronic comander and Plc with Complete Exit plaiter/batching. Location: Turkey
|
|
|
|

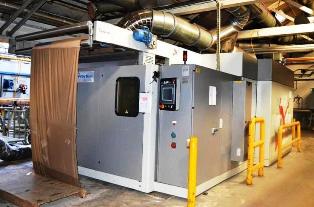

PENTEK TUMBLER Type EnAIRgy XL Year 2008 For drying, tumbling of rope fabrics ( also knitted and veaved fabrics ) in continuous form: Machine width 220 cm Working width 180 to 200 cm maximum Min. ww. 70 cm Speed : 5 – 80 m/min. Gas heating Max. air temp. 170oC Exhaust fan and filter Entry: from accumulating feeder with spreading rollers and tensioning rollers Exit: through spreading rollers and centering device on the plaiter PLC and Siemens control panel Machine can be also used for pure shrinkage of the fabric. Location Turkey |
|
|
|

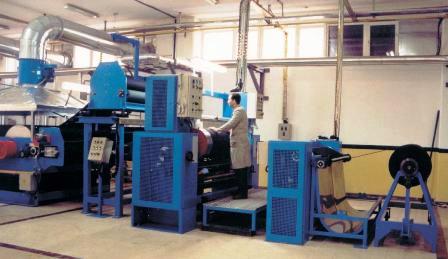

DIRECT COATING NAD LAMINATING LINE working width 200cm Year 2010 OVERALL CHARACTERICTICS TYPE OF MACHINE: Dırect Coating Line BRAND OF MACHINE: Aigle ORIGIN : Italy MODEL NO: Laminating line - mod. At2 PRODUCTION DATE: 2010
TECHNICAL INFORMATION
POWER SUPPLY 400 v/50 hz/three-phase INSTALLED POWER 5 Kw COMPRESSED AİR 7±1 kg/cm² CYLİNDERS HEATİNG Diathermic oil DİATHERMİC OİL TEMPERATURE 280°c
3) DETAILED INFORMATION The Laminating Line mod. AT2 is composed by: Unwinding Group mod. UT2/AS, consisting of: • UNWINDING TROLLEY FOR LARGE ROLLS mod. UT2 • AXIAL UNWINDER mod. AS with universal fast joint for unwinding trolley connection Coating Head mod. BS2, designed and built so that dif-ferent coating techniques can be employed (see rele-vant leaflet) Lamination Unit mod. AT2, consisting of: • UNWINDING GROUP, in order to pull the material requiring lamination without tension
• LAMINATION UNIT, consisting of: - two cylinders heated with diathermic oil (ø 2000 mm) - stainless steel surface, covered in teflon - one lamination rubber cylinder (ø 200 mm) opposite to the first cylinder - cylinder motion is obtained through a pneumatic piston with adjustable pressure and equipped with motorized micrometric adjustment of lamination thickness - two release idle cylinders opposite to the two main cylinders - idle cylinders to pass material. The unit is driven by an A.C. motor with inverter and local potentiometer for line synchronization, and is equipped with a pump for oil circulation and thermoregulation Rewinding Group mod. UT2/AS, consisting of:
• REWINDING TROLLEY FOR LARGE ROLLS mod. UT2 • AXIAL REWINDER mod. AS consisting of a lateral supporting structure with asynchronous induction motors A.C. Motorization and Control Panels mod. QE. Unit for Dry-Coat Process, composed of:
• MOVING UNWINDER, mounted on wheels and running on rails. It can be placed before the first heating cylinder and unwind material that requires lamination, or after the second heating cylinder and function as a “Dry-Coat” unit
• CALENDERING UNIT, consisting of: - counter-cylinder covered in neoprene of adequate hardness . steel upper calendering cylinder. Pressure between the two rollers is controlled by two pneumatic pistons which can be accurately adjusted in order to obtain uniform pressure all along the width of the table. With Complete working case Location Turkey
|
|
|
|

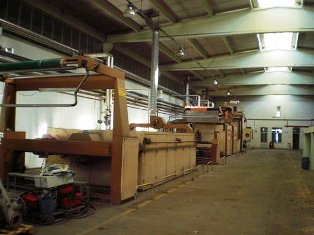

1 TUMBLER ANGLADA year 2001 6 mtr etrance long stentering chaines with pin clip shain 4 chambres, Oil heating working width 2400 mm, with entry padder, exit with plaiter Location Turkey
|
|
|
|

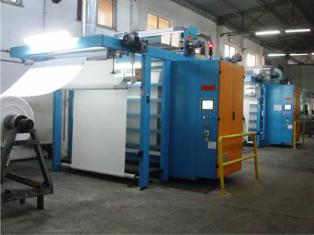

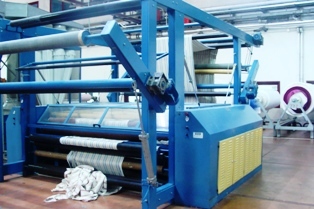

1-Lisa Carbon Brushing and Suading-Emerizing MEMNUN-MELISA Year 2006 Working width 2000mm Machine Equipment with 4 Carbon and chance emery Brush cylinders Diam 300mm 4 Brushing cylinders Indipendently driven by ac Motors witn inverters on EACH CYLINDER Automatic seam passage Electrostatic bars Folder at exit Fully automatic computer system With Aspiration group Location Turkey |
|
|
|

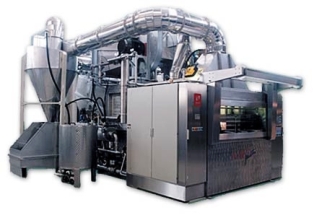

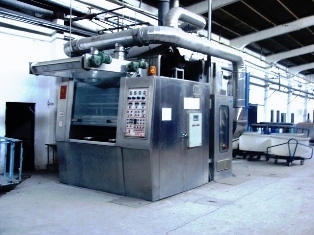

1 BIANCALANI AIRO 1000 Year 2001 type AP2XVVCE washing/softening/drying machine 3 ropes, cap. 450-600 kg, speed 30 - 100 m/min with computer cotroller with complete Location Turkey
|
|
|
|

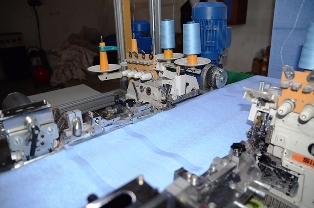

1 KARET Length hemming installation for terry fabric year 2012 Working width 30 to 200cm 2 Sewing machine with opening system Features of this installation: Edge trimming Pile edge scanning Label dispensing optional Hemming (hem forming upwards) Plaiting Advantages for your production: High output High flexibility Chain stitch, cover stitch or lock stitch with automatic bobbin case changer Smooth working up of thick borders High precision Remote maintenance with complete Location Turkey |
|
|
|

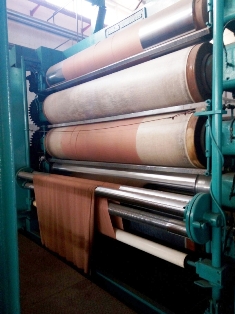

1 Calander Kleineweferst Type RKK340 Year 1998 Typ Nipco L machine width 2600mm Working width 2200mm 4 rollers 1 Steel rollers dia 400mm, Teflon coated 1 Paper rollers dia 600mm, 1 Paper rollers dia 600mm, 1 Steel rollers dia 400mm Oil heating Pressure 50 to 200 tons Electric heating, high entry with E&L KF 2040 edge guiders, Operator platform, Seam detector,Metal detector, digital control panel, 2 fabrics air opening system Exit with "A" frame batcher. With complete Location Turkey |
|
|
|

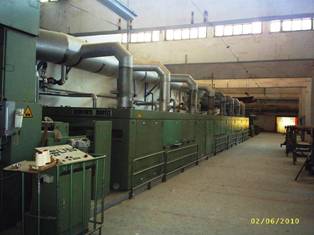

1-Orginal Stenter MONFORTS-MONTEX Typ:8 F Year 1999 Machine Width 240 cm Working Width 220 cm 8 Chambers ( chambers length 3000 mm) Gas heating Etrance 7 Mtr Long , horizontal Pin clip Chain for knitted and weaved Fabric Erhard+Leimer Air Opening system. 2 Entry with Monfongs padder mod.76.2200, 2 Inox tanks with dossing pums with mixer 1 Mahlo Fabrics Opening weftstraightener 2 Air Edge Cuttint Ssytem Textometer with pleva Tandamatic Fabrics Opening system Electronic commander and Plc with Complete Location Turkey
|
|
|
